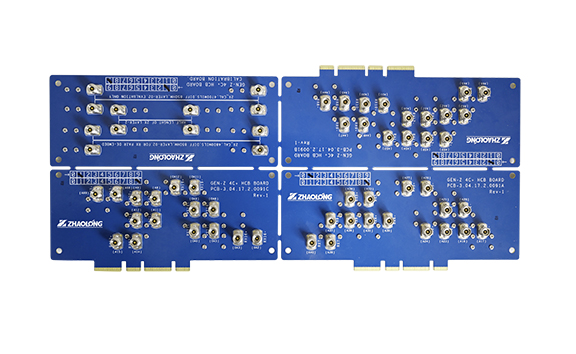

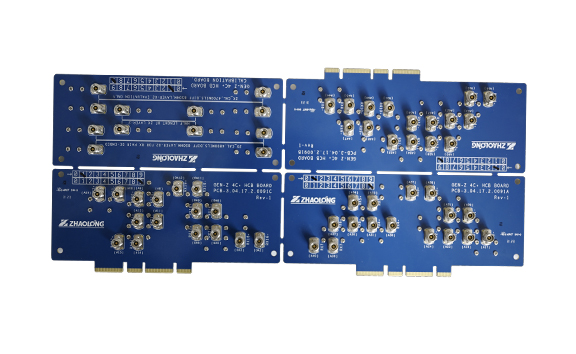

Part Details
Product Specification
ITEM | Description |
Connector | Gen-Z 4C+ Finger plug as defined in SFF-TA-1002 |
Connector Contact | 168-pin |
Connector Configuration | gold finger plug |
Connector Termination Style | N/A |
No. of HSIO Routed | 24 TX and 24 RX |
RF Co-axial Launch Connector | 2.40mm connector(50 Ohm) |
HSIO Routing | 85 Ohm ±5% differential-ended stripline |
Board Stack-Up | 6 layers (1.57mm thickness) |
De-embedding structure | 2X THRU line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | N/A |
