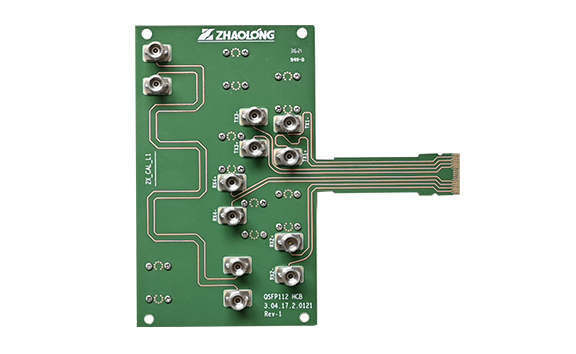

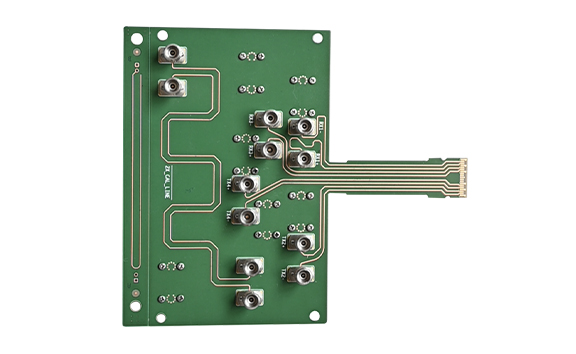

Part Details
Product Specification
ITEM | Description |
Connector | Gold finger as defined in QSFP-DD112 MSA |
Connector Contact | 38-Pin hard-gold finger plug |
Connector Configuration | N/A |
Connector Termination Style | N/A |
No. of HSIO Routed | 4 TX and 4 RX |
RF Co-axial Launch Connector | 1.85mm Connector -50 Ohm |
HSIO Routing | 50 Ohm ±5% Single-Ended coplanar Microstrip |
Board Stack-Up | 6 Layers (1.00mm thickness) |
De-embedding structure | 2X THRU Line |
Reference plane for 2X THRU De-embedding structure | 40mils from void |
Power source to DUT | N/A |
