Applcation / Market
1. Data center & Networking Equipment
2. Servers/Storage Devices
3. PCIe signal extend or jump
4. Gaming PC
5. Industry PC (IPC)
6. GPU Card
Features and Benefits
1. Customer system design more flexible
2. Support PCIe 4.0 in long distance
3. Supports 85 ohm impedance applications
4. Supports 34-30AWG .
5. Provide Laminate and FFC type .
Mechanical Performance
1. Mating force: 95N(16x) / 57N (8x) maximum
2. Unmating force: 15N(16x) / 9N (8x) minimum
3. Rated durability cycles: 50 cycles minimum
Electrical Performance
1. Voltage: 30VAC per contact
2. Current: 0.5A per contact
3. Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
4. Insulation Resistance: 10 MΩ minimum between adjacent pins
Signal Integrity
1. PCIe 4.0 16.0 GT/S
2. PCIe 3.0 8.0 GT/S
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Status: Not Reviewed
PCIe 4.0 8x Extend Cable

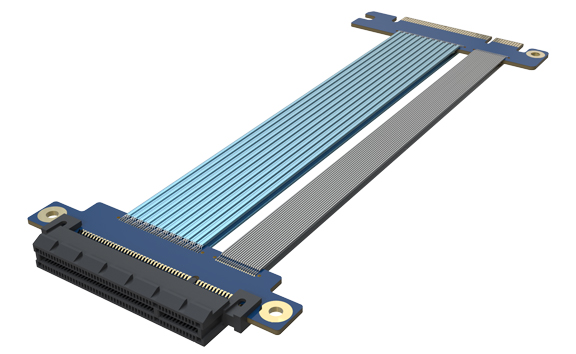

Product Description: PCIe 4.0 8x Extend Cable Assembly (Straddle Mount PCIe Slot with Twin-AX Laminate Cable)
(The photo is only for reference. Please contact Zaolong sales for any inquiries.)
Series: Extend PCIe Cable
Connector:Straddle Mount PCIe Slot
Cable Type:Twin-AX Laminate
Cable Length: 1.0 Meter
Signal Wire Size: 30AWG
Power Wire : 18~20AWG hook wire or 30AWG Flat Cable
Lock to mating part: optional lock tab
Plating: Au 30u" min on contact area or other optional
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0
产品形貌：PCIe 4.0 8x Extend Cable Assembly (Straddle Mount PCIe Slot with Twin-AX Laminate Cable)
（图面供参考， ，，，，，，，任何疑问请联系球速体育销售）
系列：PCIe延伸线系列
线材长度：1m
信号线线径：30AWG
电源线线径：16AWG和30AWG扁平线
镀层：接触区域镀金层大于30u"或参照客户要求
毗连器颜色：玄色
环保要求：ROHS
阻燃品级：UL94V-0
